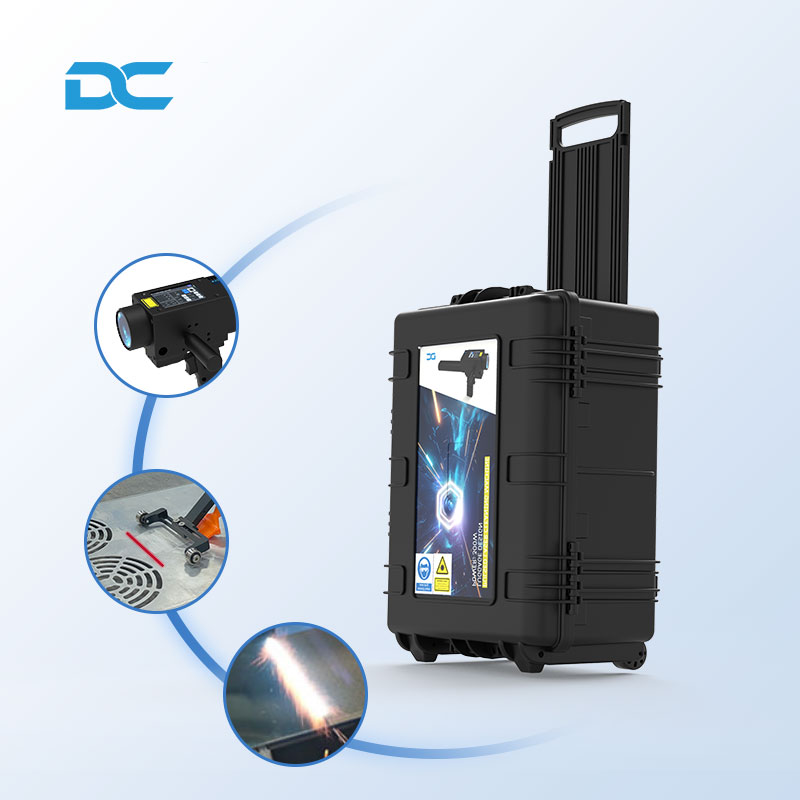

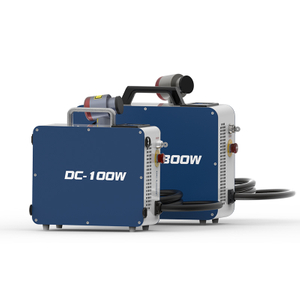

Luggage Box 100w 200w 300w 500w Fiber Pulse Wood Metal Rust Removal Laser Cleaning Machine

Dachuan Pulsed Laser Cleaning Machine : It selectively removes surface deposits (laser derusting, rust, oil, paint, oxides, etc.) without damaging substrates. Suitable for metals, non-metals and more, it handles large-area and small precision cleaning tasks.

Brand:
Dachuan

Luggage box pulse cleaning machine:	100w 200w 300w 500w
Availability:

Quantity:



Inquiry Whatsapp

*Verify Code

Product Description

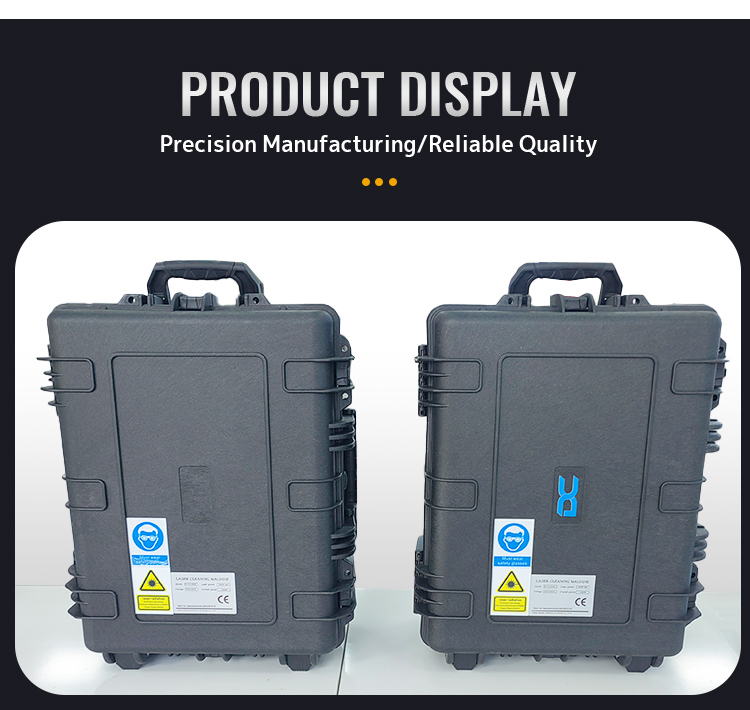

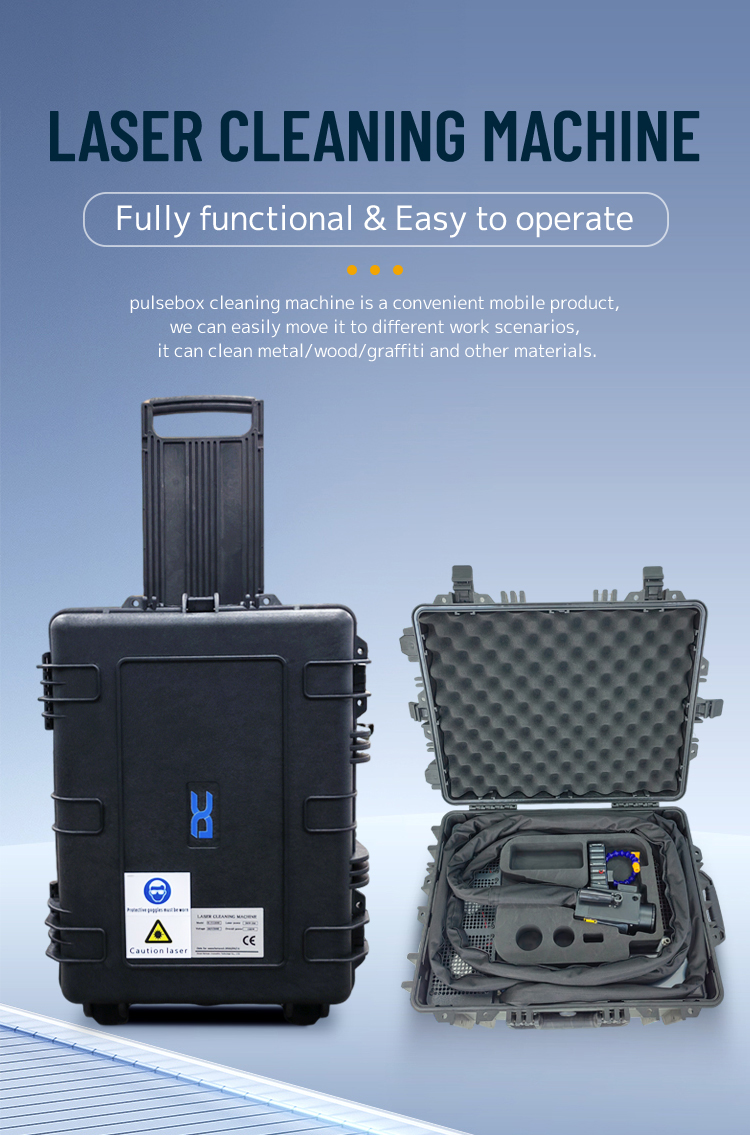

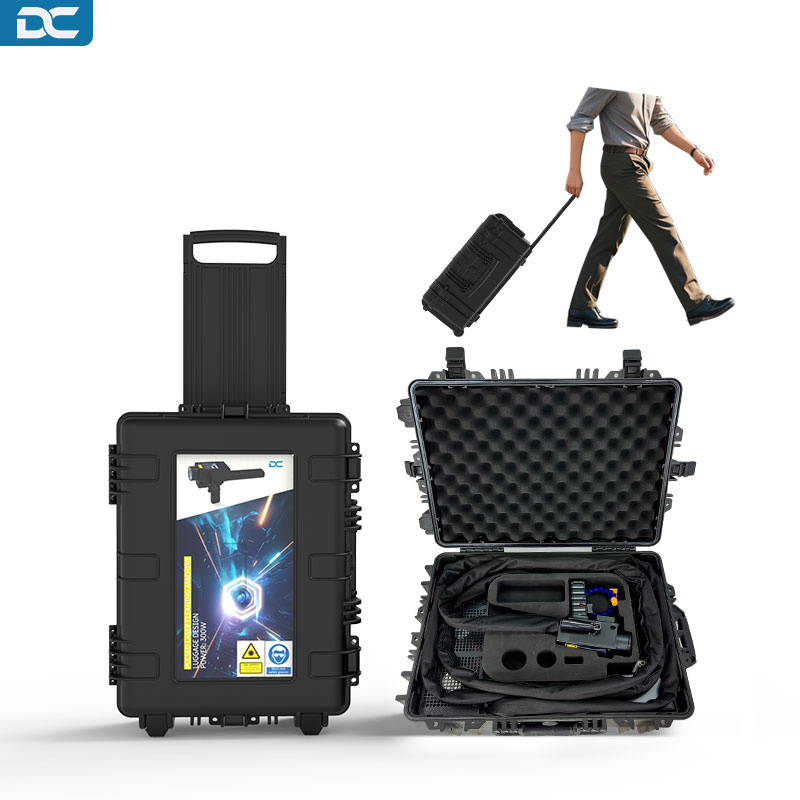

The Dachuan Pulse Luggage Box Laser Cleaning Machine is a high-performance, portable surface treatment device that perfectly combines mobility, efficiency and safety. Adopting a suitcase-like design, it is lightweight and easy to carry, supporting seamless transportation via high-speed rail or air for hassle-free cross-region operations across diverse work scenarios.

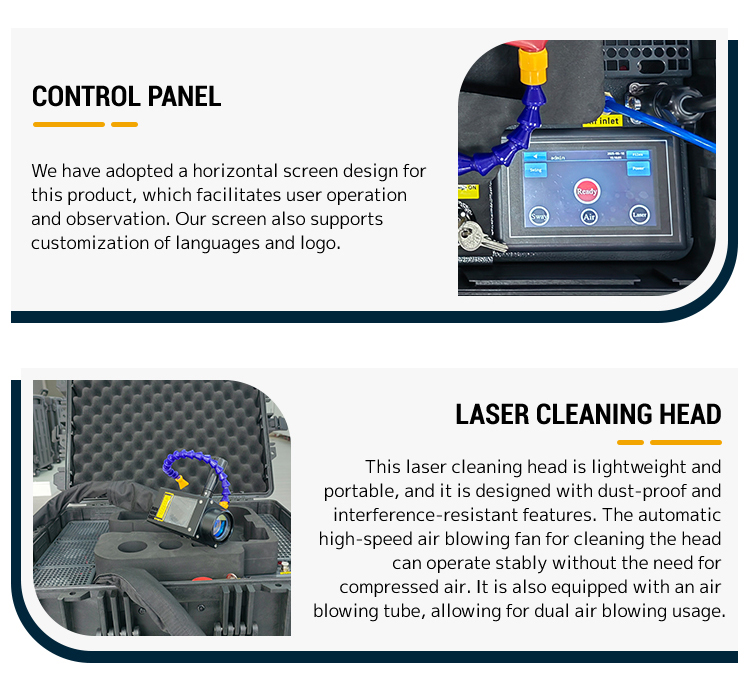

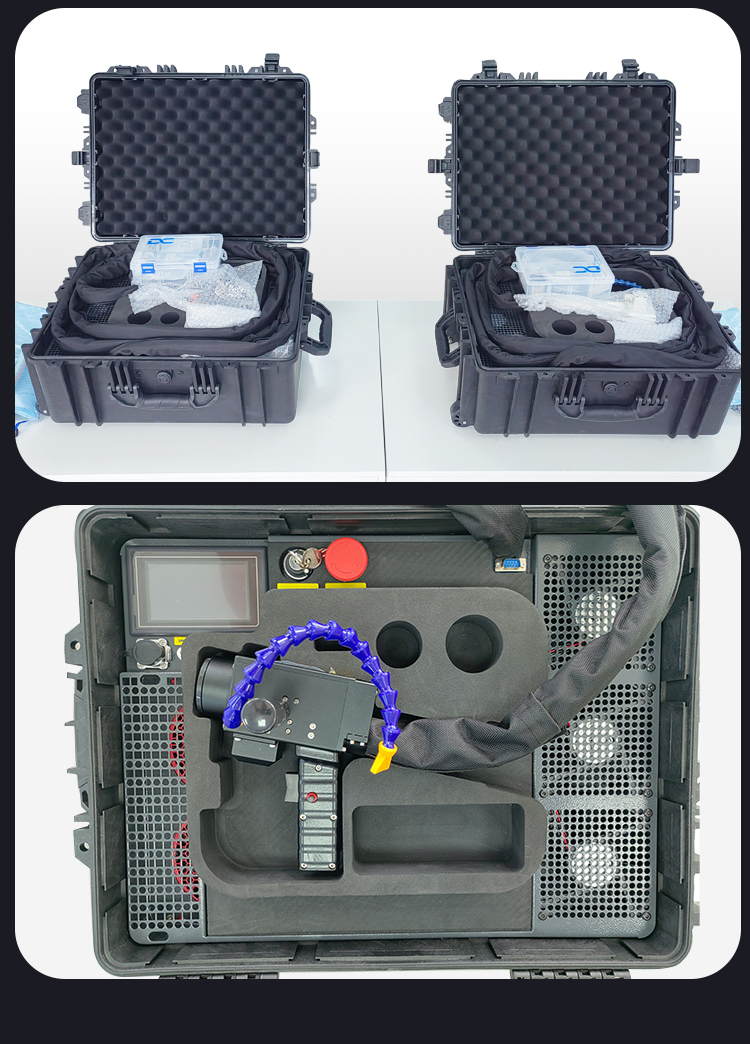

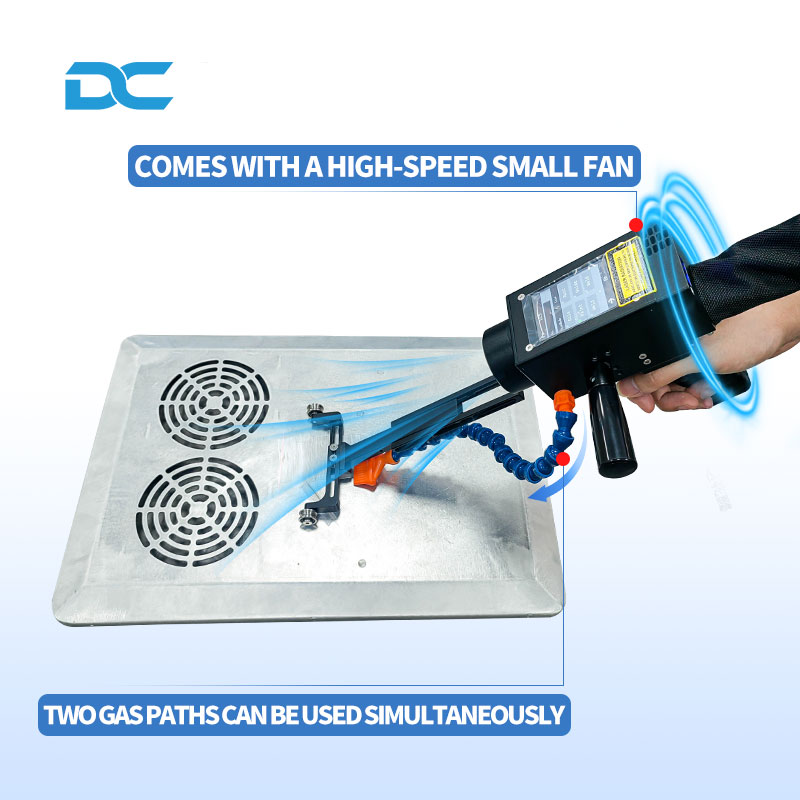

Equipped with a uniquely designed cleaning head featuring 2-way air blowing, a built-in high-speed fan and a cleaning bracket, this machine delivers powerful and precise cleaning capabilities. It efficiently removes rust, oil stains, coatings, graffiti and other contaminants from various surfaces such as metal and wood, fully meeting diverse cleaning demands. Three external high-speed fans ensure stable operation even in high-temperature weather, enhancing its adaptability to harsh working environments.

Safety is a top priority for Dachuan—this machine is equipped with protective glasses that meet OD8 standards and hold certification from ECS GmbH (European Certification Service), providing reliable protection for operators. Available in multiple power levels, it offers cost-effective options tailored to different budgets and usage requirements, making it widely applicable in industries including mechanical processing, cultural relic restoration, mold & food processing, and electronic circuits. With non-contact, eco-friendly operation, long core component lifespan and low maintenance costs, it stands as a reliable green cleaning solution for modern workflows.

Product Details

Power	100W	200W	300W	500W
Content	DC-LG100SL	DC-LG200SL	DC-LG300SL	DC-LG500SL
Laser	JPT	JPT	JPT	JPT
Power supply	Single-phase 100-240V±10%, 50/60Hz AC	Single-phase 100-240V±10%, 50/60Hz AC	Single-phase 100-240V±10%, 50/60Hz AC	Single-phase 220V±10%, 50/60Hz AC
Overall power consumption	＜600W	≤1000W	≤1500W	≤2300W
Working ambient temperature	5℃ ~ 40℃	5℃ ~ 40℃	5℃ ~ 40℃	5℃ ~ 40℃
Working environment humidity	80% or less	80% or less	80% or less	80% or less
Average laser power	≥100W	≥200W	≥300W	≥500W
Power instability	< 5%	< 5%	< 5%	< 5%
How the laser works	Pulse	Pulse	Pulse	Pulse
Pulse width	2-500ns adjustable	13-500ns	2-500ns	2-500ns
Maximum monopulse energy	1.5 mJ	2mJ/5mj	2 mJ/5mj/15mj	1.5mJ/15mj/50mj
Fiber length	5m	5m	5m	5m
Cooling method	Air cooling	Air cooling	Air cooling	Air cooling
*Scan range (length width)**	0-100mm, continuously adjustable; Dual axis supports 9 scanning modes	0-145mm, continuously adjustable; Dual axis supports 8 scanning modes;	0-145mm, continuously adjustable; Dual-axis support 9 scanning modes;	0-145mm, continuously adjustable; Dual-axis support 9 scanning modes;

Field mirror focal length (mm)	160mm (optional 210mm/254mm/330mm/420mm)	210mm (optional 160mm/254mm/330mm/420mm)	210mm (optional 160mm/254mm/330mm/420mm)	210mm (optional 160mm/254mm/330mm/420mm)
Host dimensions (length, width and height)	About 617mm x 469mm x 291mm	About 617mm x 469mm x 291mm	About 617mm x 469mm x 291mm	About 617mm x 469mm x 291mm
Weight of the machine	About 28Kg	About 28Kg	Approx. 29Kg	Approx. 35Kg
Cleaning head weight	< 0.9Kg	< 0.9Kg	< 0.9Kg	< 0.9Kg
